InformazioniCOMPOSIZIONE DI VENDITA:
N. 4 SUPPORTO ELASTICO 6LY, 600, (BRIDGESTONE)
- PANEL BACK UP VC10/VC20, NEW TONDO
- DRIVE ECU 6LY, VC20
- DRIVE A HARNESS VC20
- STATION HARNESS VC20
- HELM ECU VC20
- HELM HARNESS VC20
- TERMINAL ADAPTER VC20
- SWITCH PANEL ASSY SINGLE VC20
- DISPLAY VC20-2
- BU EX HARNESS MT.5 VC10/VC20,VN
- PROLUNGA MT.5 VC20
- MANUALE ADEGUATO AL MOTORE
- DUAL TOPMOUNT INBOARD VC20
- TWIN HARNESS VC20
- PULSANTE STOP
- DICHIARAZIONE DI POTENZA

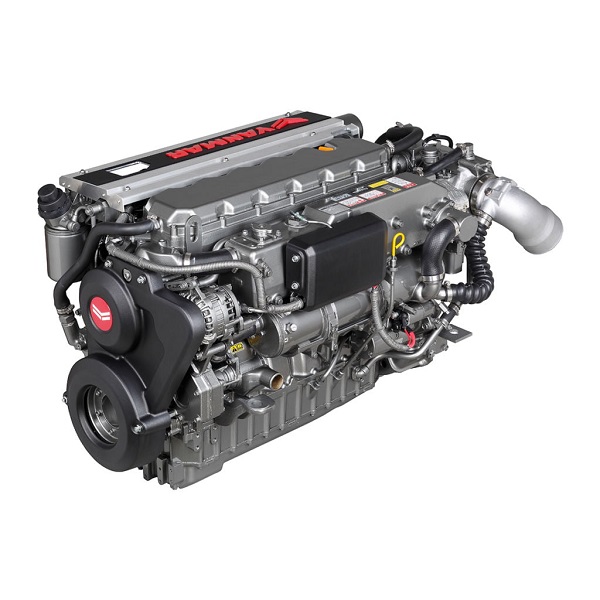

SPECIFICATIONS:
RATED OUTPUT 294 KW / 400 MHP
RATED SPEED 3300 RPM
DISPLACEMENT 5.813 L / 354 CU. IN
NO. OF CYLINDERS6 CYLINDERS
CYLINDER BORE X STROKE 106 MM X 110 MM / 4.17 IN X 4.33 IN
COMBUSTION SYSTEM DIRECT INJECTION, DENSO COMMON RAIL SYSTEM ASPIRATION
TURBOCHARGED & INTERCOOLED
ALTERNATOR 12V - 125A
DRY WEIGHT WITHOUT GEAR 585 KG / 1290 LBS
DIMENSIONS 1440 MM X 748.5 MM X 773.8 MM
CONTROLS ELECTRONIC
CERTIFICATIONS RCD 2 IMO TIER 2 EPA TIER 3 EPA TIER 3C BSO II EMC SOLAS
NOTE:
1 KW = 1.3596 MHP = 1.34102 BHP
FUEL CONDITION: DENSITY AT 15°C = 0.842 G/CM³
TECHNICAL DATA IS ACCORDING TO (ISO 8665) / (ISO 3046)
FUEL TEMPERATURE 40°C AT THE INLET OF THE FUEL INJECTION PUMP (ISO 8665)
LENGTH MEASURED WITH WITH KMH61A-2 GEARBOX & HIGH-RISER ELBOW
(DIMENSIONS MAY VARY WITH OTHER GEARS/ELBOW)
