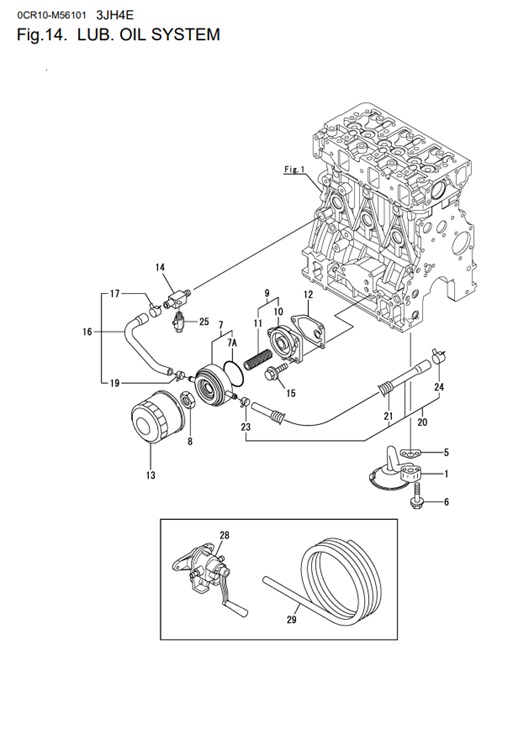

3JH4E 0CR10-M56101-LOS LUB.OIL SYSTEM

3JH4E-0CR10-M56101-LOS-LUB.OIL-SYSTEM
Cerca

Impostazioni di ricerca

Mostra prodotti associati



Disponibile
Ordinabile

ARTICOLO

PREZZO

QT.A

1

PIPE ASSY OIL INLET

€33,69

i

5

GASKET

€3,05

i

6

BULLONE

€1,93

i

7

COOLER ASSY 4JH4/5

€830,46

i

7

O RING

€26,32

i

8

VITE

€26,81

i

8

NUT, OIL COOLER

€19,50

i

9

BRACKET ASSY

€85,79

i

11

STUD, L=67

€15,66

i

12

GUARNIZIONE

€3,60

i

13

FILTRO OLIO 11930535151

€8,04

i

13

FILTRO OLIO 11930535151

€8,04

i

14

GUARNIZIONE

€57,77

i

15

BULLONE

€1,66

i

16

PIPE ASSY

€52,31

i

17

COLLARE

€2,52

i

19

MORSETTI 15

€4,98

i

20

HOSE ASSY,COOLER OUT

€47,06

i

21

TUBE,CORRUCATED 19 3JH4E

€49,81

i

23

MORSETTI 15

€4,98

i

24

FASCETTA

€4,42

i

24

COLLARE

€2,52

i

25

RUBINETTO 119620-19290-Z 12013049350

€47,85

i

28

POMPA OLIO 4LH/4BY

€573,13

i
