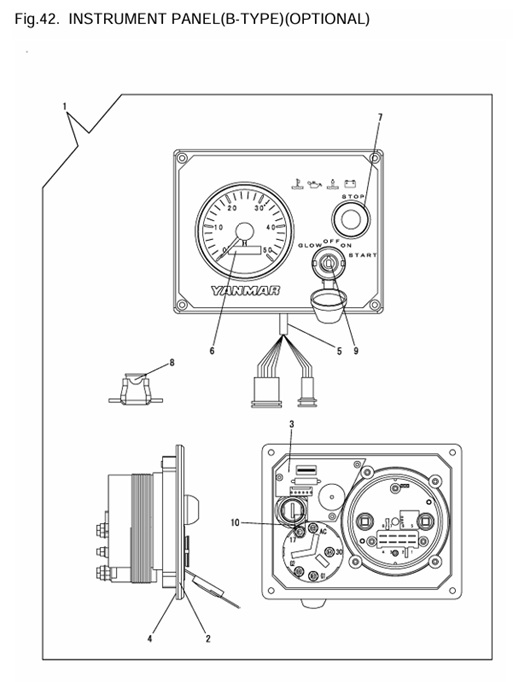

4JH4E (53Hp) 0CR10-M56901-IP INSTRUMENT PANEL(B-TYPE)(OPTIONAL)

image/jpeg

4JH4E (53Hp) 0CR10-M56901-IP INSTRUMENT PANEL(B-TYPE)(OPTIONAL)

4JH4E-(53Hp)-0CR10-M56901-IP-INSTRUMENT-PANEL(B-TYPE)(OPTIONAL)

Impostazioni di ricerca

Mostra prodotti associati

Tutti
Originali
Alternativi

Disponibile

Ordinabile

ARTICOLO

PREZZO

QT.A

1

PANNELLO STRUMENTI B20

€1111,72

Quantità:

i

2

ADESIVO MASCHERA PANNELLO B DIGIT

€93,51

Quantità:

i

3

Usare codice: 12927191132

€1183,70

Quantità:

i

3

SCHEDA PANNELLO B DIGIT NEW 12927191130/1

€777,63

Quantità:

i

3

SCHEDA PANNELLO B DIGIT NEW 12927191130/1

€777,63

Quantità:

i

4

GUARNIZIONE PANNELLO

€56,19

Quantità:

i

6

CONTAGIRI PANNELLO B/C DIGIT solo per segnale da alternatore

€273,34

Quantità:

i

7

PULSANTE STOP

€130,71

Quantità:

i

8

FUSIBILE

€13,70

Quantità:

i

9

BLOCCHETTO AVV. 5 CONTATTI + CHIAVE

€103,17

Quantità:
